Web guiding, web tension control and print inspection – everything from a single source
At Labelexpo 2017 in Brussels Erhardt+Leimer will be presenting a cross-section of its wide range of products for the label industry. On exhibition for the first time is a new web guider and a new web tension measuring amplifier.

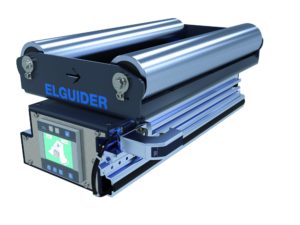

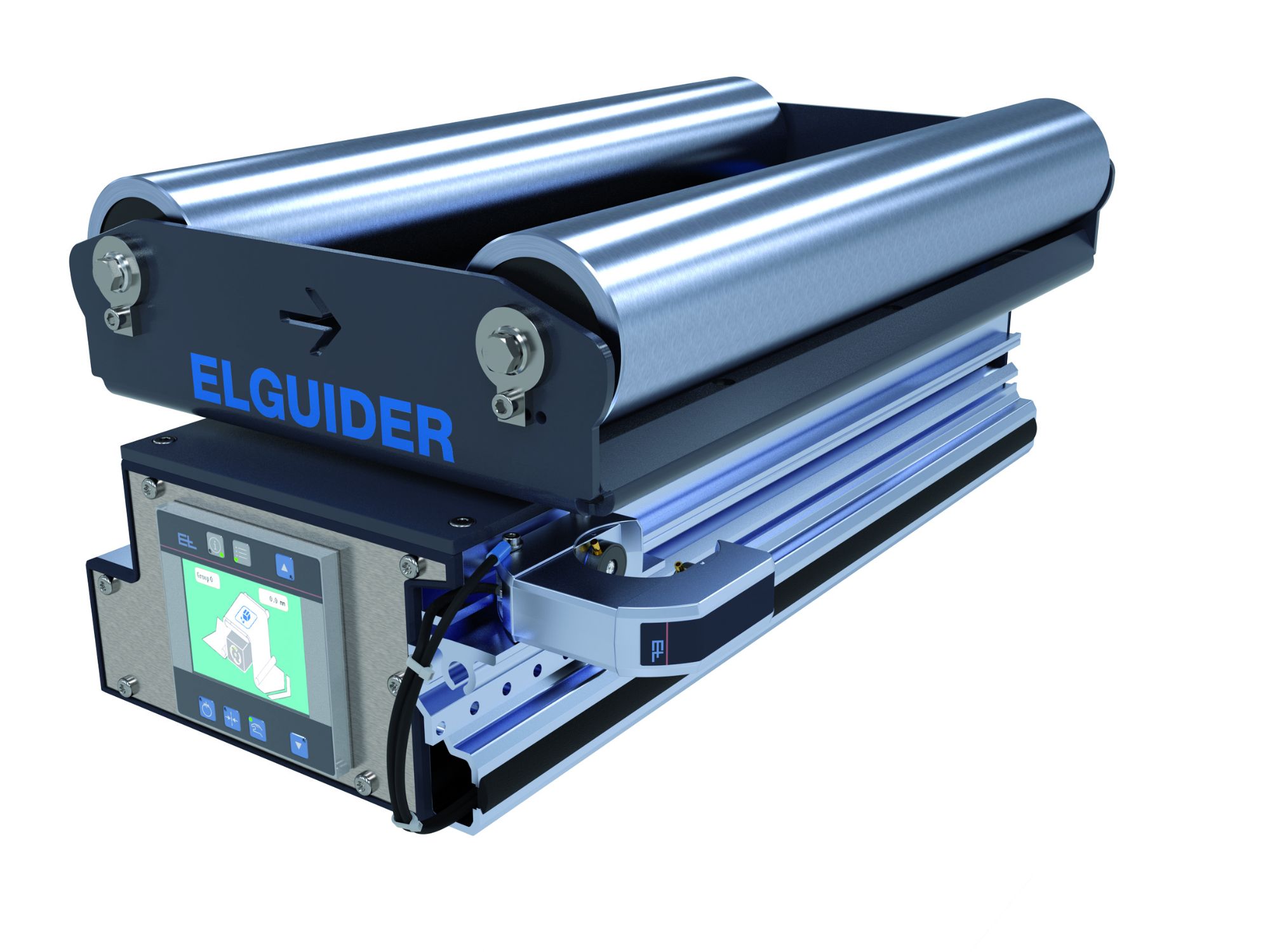

The new DR 2375 web guider from the ELGUIDER product family was developed especially for the label industry. Commissioning of the new unit could not be easier. The key parameters are already pre-set on delivery, and a commissioning wizard guides the operator step-by-step through the additional input windows that need to be filled in. The unit is operated via a touch display (RT 4008). The installation situation is visualized for the customer on this display in exactly the same way as it presents itself to the operator on the actual machine.
The web guider is also quite a bit more compact than comparable competitor models. Reference runs are no longer required thanks to the integrated absolute value encoder, which also ensures that the current position is saved in the event of a power failure. The use of roller bearings instead of slide bearings effectively prevents stick-slip. In addition, the cable glands are secured with strain relief to prevent cable breakage. The new unit also impresses in terms of control dynamics, with a control frequency of up to 8 Hz.
In addition to infrared sensors and ultrasonic sensors, the color line sensor FE 52 can also be used for web guiding. This sensor has a trigger mode, which means that there is no need for a continuous guiding criterion on the web.
As an option it is also possible to integrate a splice table with an adhesive roll and pneumatic web clamps.
Web tension displayed separately for left and right side

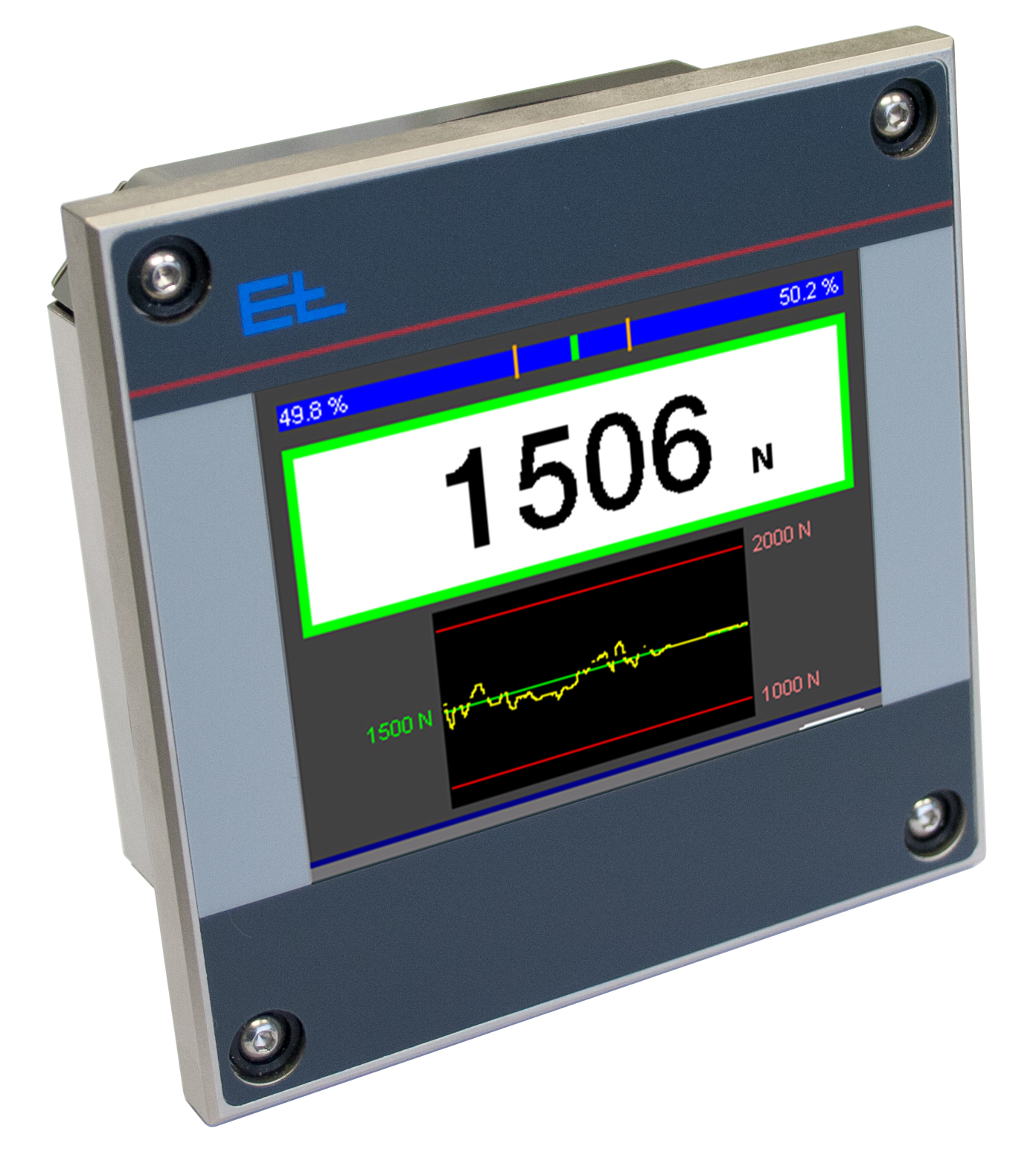

The PA 62 is a two-channel measuring amplifier for connecting any load cells; it displays not only the sum signal but also the web tension on the left and right hand side of the web separately. The device can do without any fixed buttons; buttons for operation are displayed on the LCD display only when required. Besides the actual web tension it indicates a trend curve and alerts the operator if limits are exceeded. The inputs and outputs can be configured individually. The device also offers an Ethernet interface for process integration.
Simple and inexpensive quality assurance

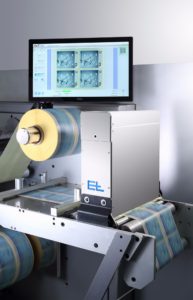

The SMARTSCAN system offers simple and inexpensive access to print image monitoring. But more than this, in fact the system is a genuine multi-talent: in addition to a video function with zoom, it also enables 100% print image inspection, splice detection and detection of missing labels and unremoved matrix. You can pick and choose the different functions you require and combine them building block-style into the perfect system for your specific requirements.
Thanks to a special illumination concept for inspections, not only can the process of setting up jobs be almost fully automated, but it is also possible to set up extremely reliable defect detection. The simplicity of the system is matched by the controls used to operate it, which feature a widescreen monitor with touchscreen functionality. During normal operation, the operator will usually only need to press two buttons after changing jobs in order to start the inspection.
Since the camera unit is housed in a compact enclosure, SMARTSCAN can be retrofitted with no problems whatsoever to existing printing machines and finishing machines.
The Erhardt+Leimer stand is in hall 4, stand D45.
