Controlling PP-stretch in Paperboard Laminating
Tension Control is critical in Extensible Film Processes
It was clear to see that this laminating process required a closed-loop tension control system that could measure actual tension in pounds and maintain substrate tension precisely and accurately within each batch and between batches.
Maintenance of a set tension to within a few ounces throughout each production run was required to control the amount of polypropylene stretch to within 1/32 inch.

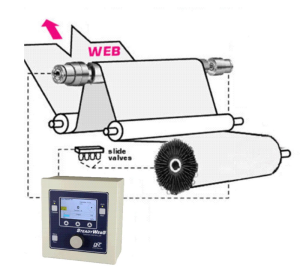

The simple, affordable solution was to install a pneumatic tension control system including shaft-mounted model C tension transducers and an automatic controller with a soft start feature to the unwind stand of the plant’s extrusion laminating equipment.
This application illustrates the importance of using accurate tension control to reduce process deviations that have a negative effect on productivity or product quality.
A US manufacturer of recycled paperboard cartons needed to expand the use of polypropylene film in its production of paperboard packaging. One of its plant’s customers was seeking paperboard products with polypropylene’s high moisture barrier properties.
But because of the stretchy nature of the polypropylene web, small changes in web tension that weren’t being controlled on the company’s laminating machinery resulted in inconsistent stretching and registration problems on preprinted material.
The old manual web tension control system installed in the unwind zone produced readings in percentages rather than absolute web tension in pounds. This made it difficult for the operator to make adjustments of consistent magnitude with respect to changes in the observed web tension. The resulting stretch deviation in various locations on the web caused the web to be thrown out of register in places.
Because the tension of the polypropylene web was not accurately reproducible without automatic tension control, lost productivity and material waste was often the outcome.
By reducing web scrap and allowing a process to run at higher speeds with defect-free output, a sound web tension control system will not only improve a machines bottom line performance, but it can pay for itself in as little as a few weeks.
